03 Capabilities
Machining
Rough and finish machining in-house, ready to weld in.
Rough and finish machining in-house, so a forging leaves our plants ready to weld in.
Specifications
Specifications
- Operations:
- Turning · vertical turning · boring · milling · drilling · deep drilling · tapping · contouring
- Max VTL swing:
- 63 in (Honor VL-125C)
- HBM travels:
- to 78.7 × 70.9 × 66.9 in (Femco BMC-110R2)
- HBM table load:
- to 15,472 lb (Nomura)
- Lathe envelope:
- 24.8 in dia × 80 in
- Finish:
- RF ≤ 250 AARH; RTJ groove ≤ 63 AARH
- Drilling:
- ASME B16.5 / B16.47; studding outlets tapped per UG-43
CNC equipment
13 CNC machines
TODO: confirm the current plant for each machine (photos from 2020)

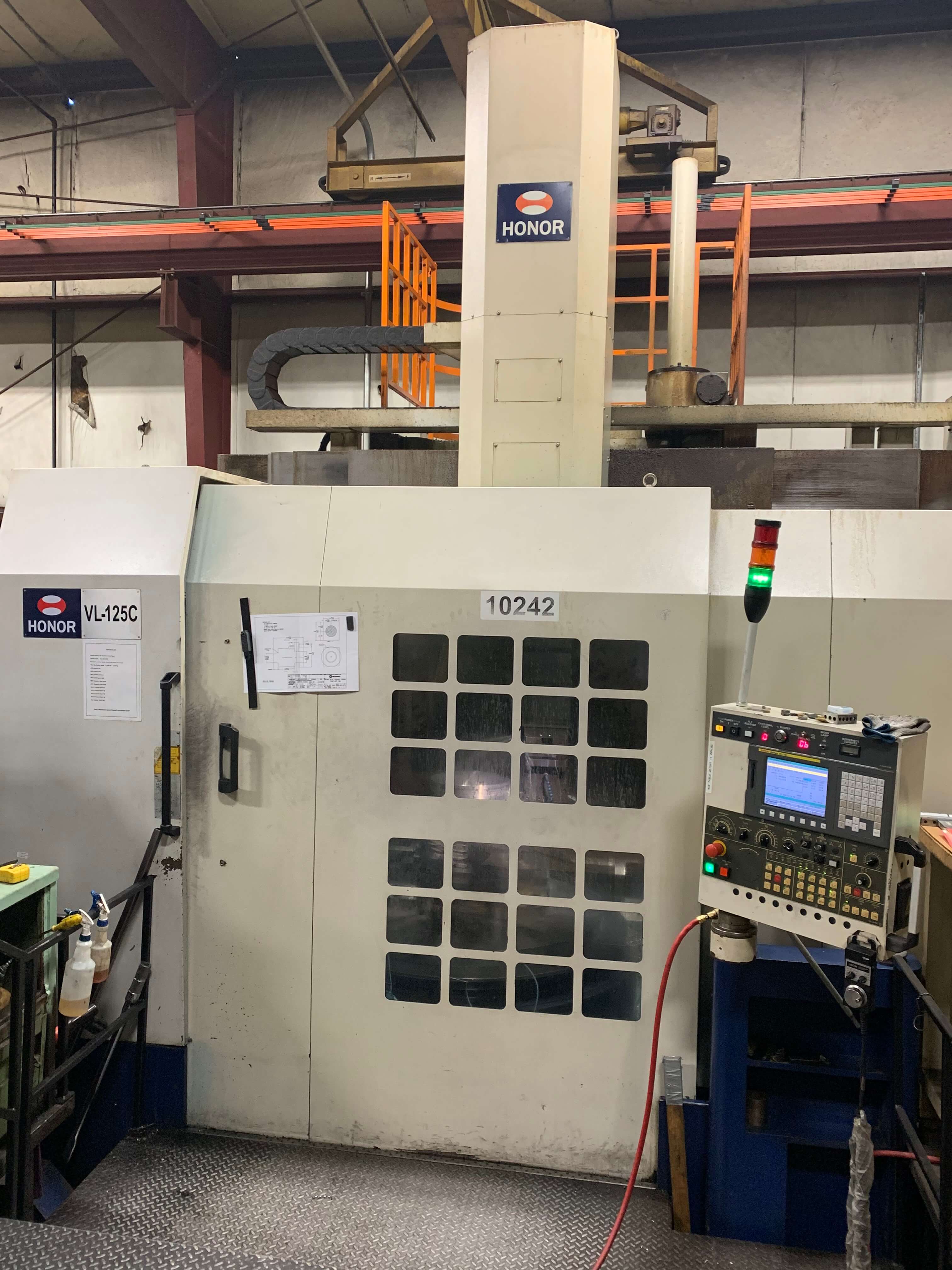

Honor VL-125C
Vertical turret lathe
63 in swing, 49 in height, 49 in table

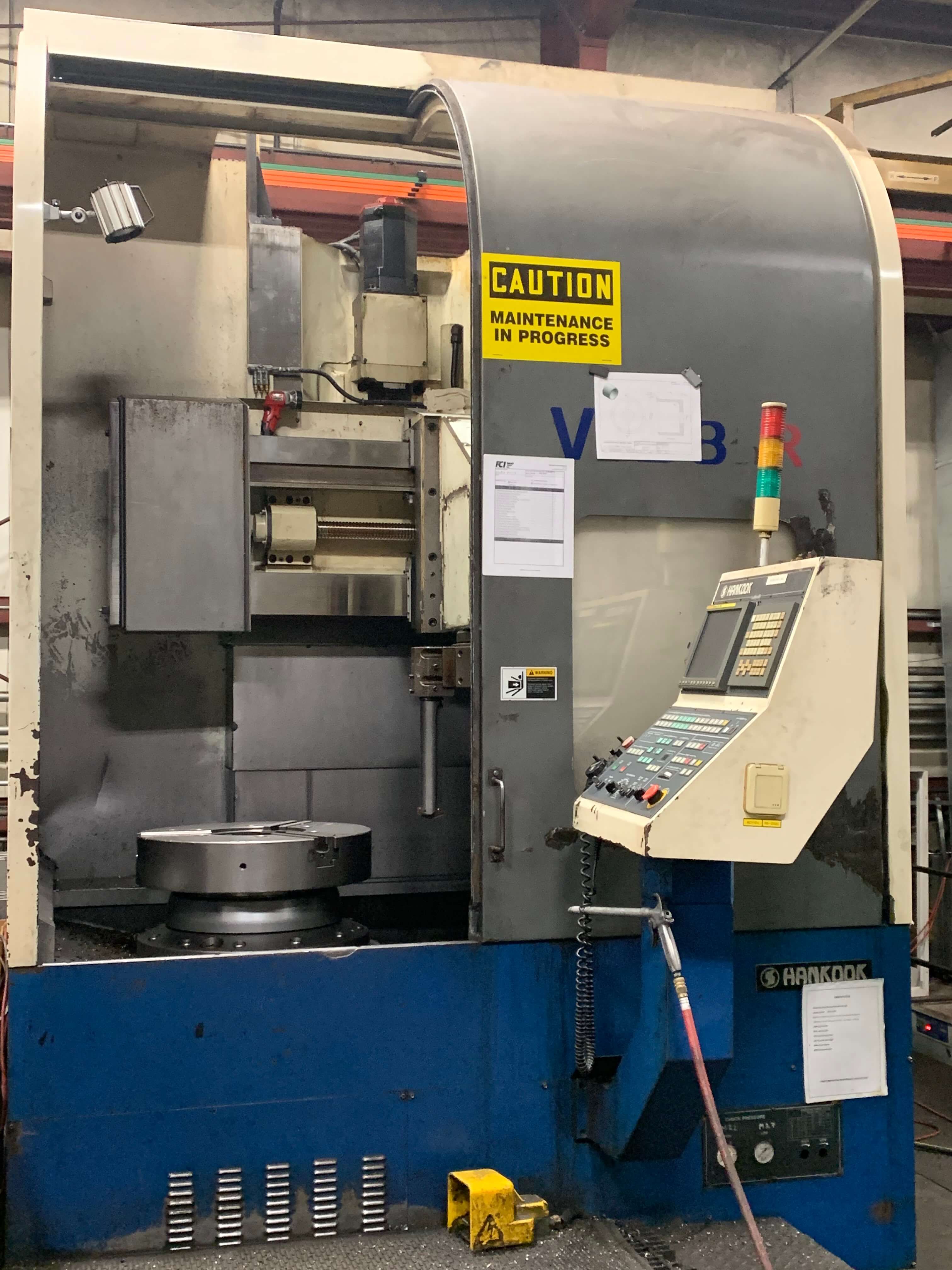

Hankook VTB-85R
Vertical turret lathe

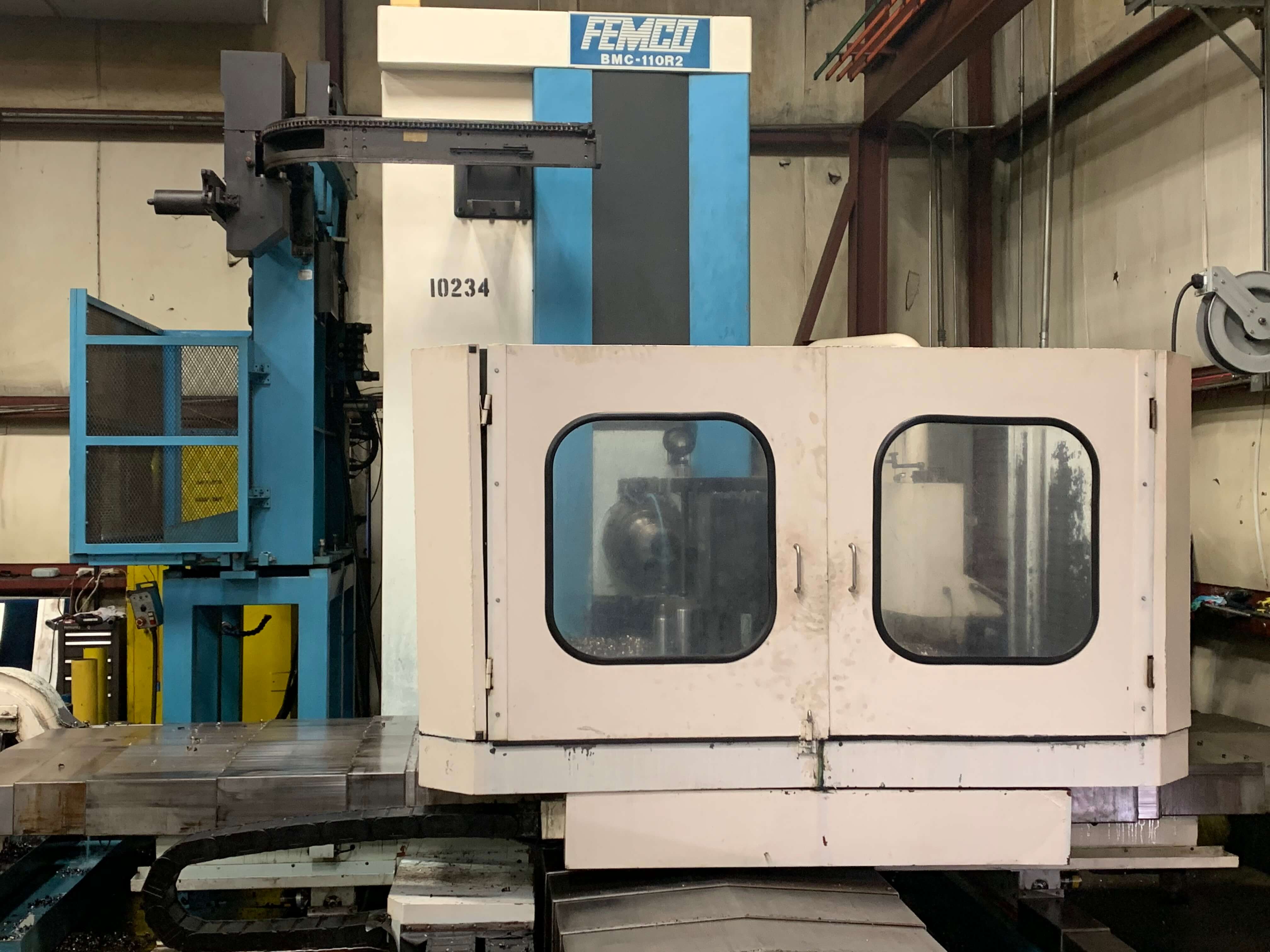

Femco BMC-110R2
Horizontal boring mill
X 78.7 / Y 70.9 / Z 66.9 in; 13,889 lb table

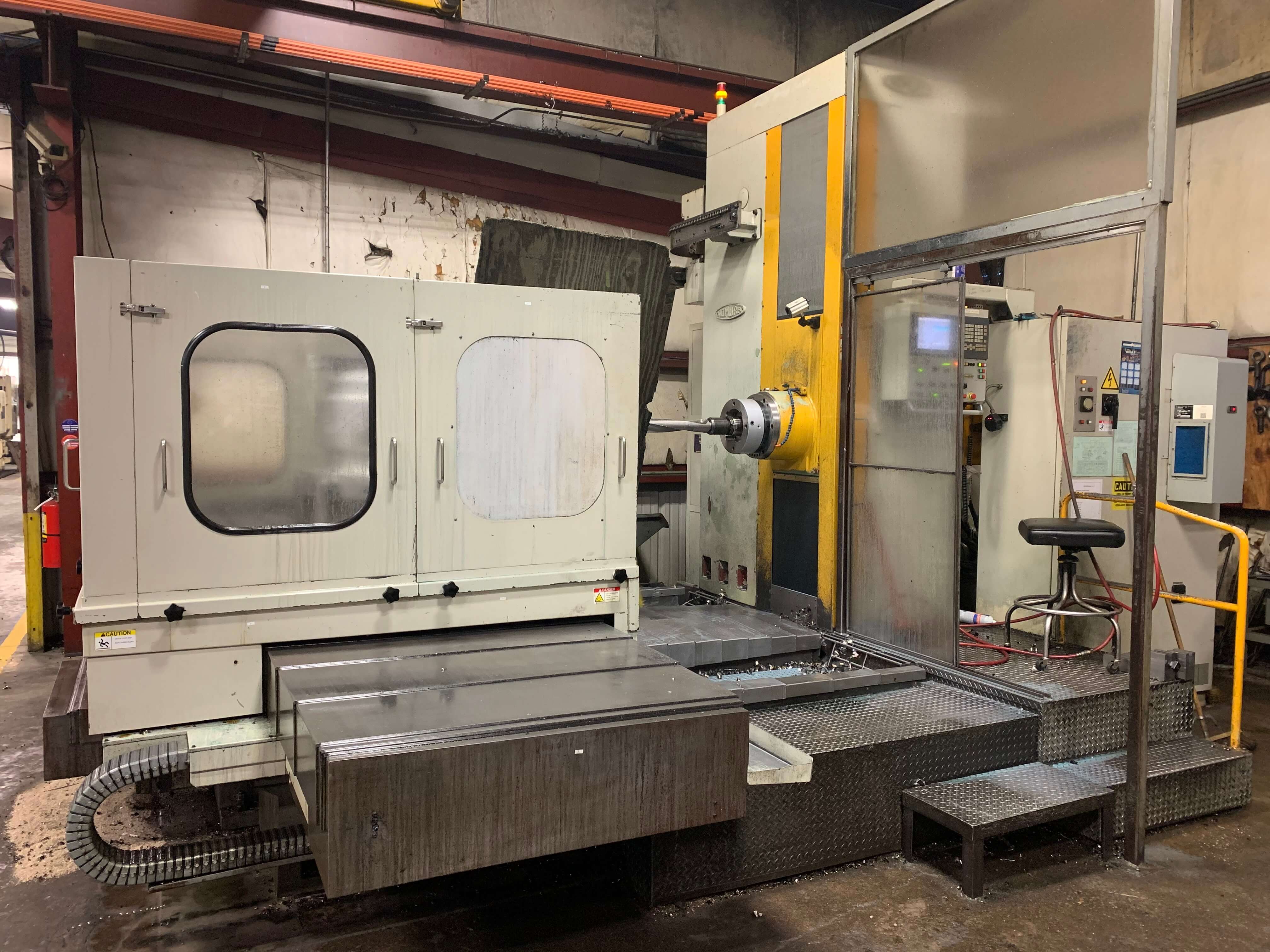

Nomura
Horizontal boring mill
15,472 lb table load

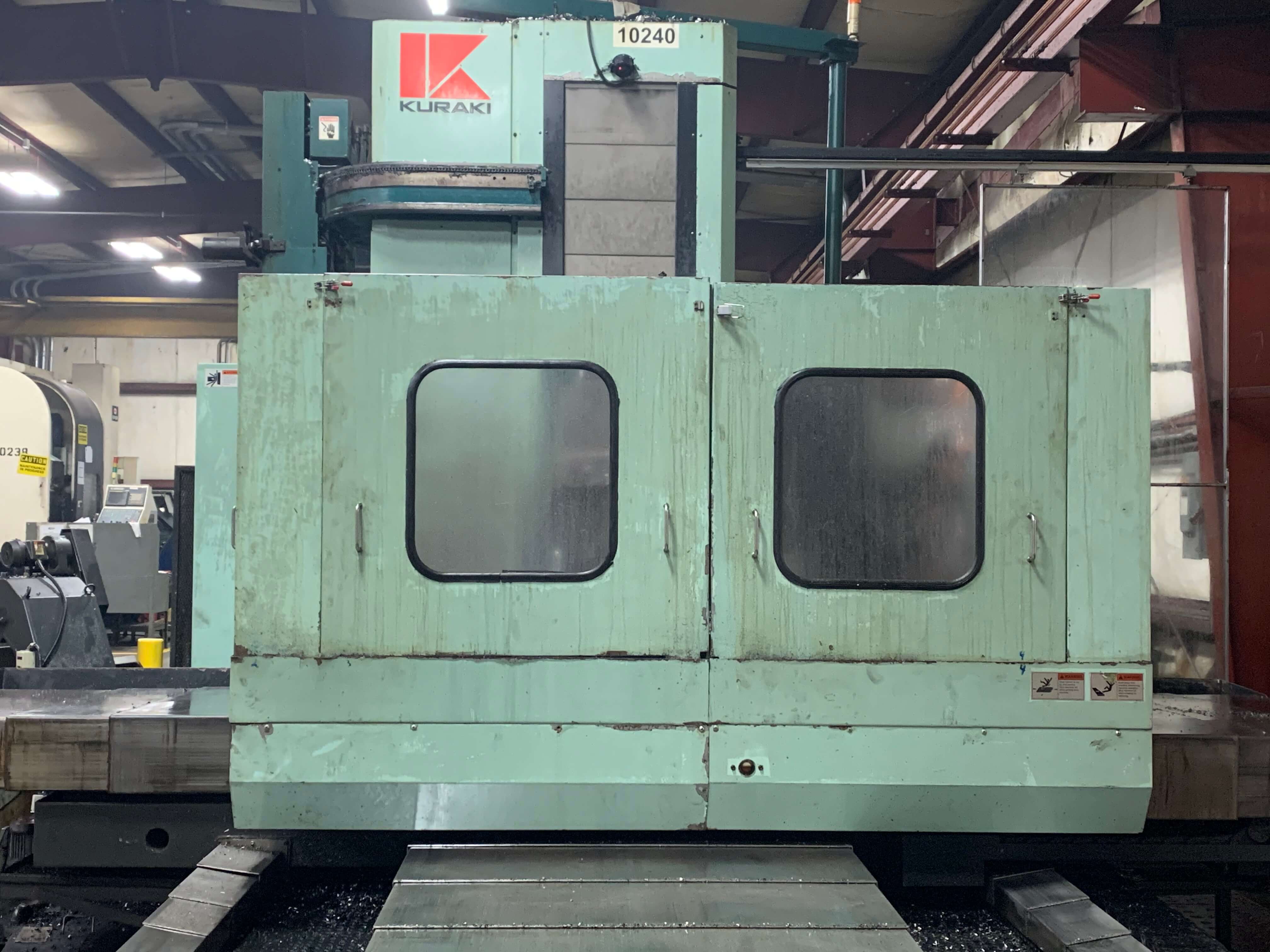

Kuraki KBT-11A
Horizontal boring mill

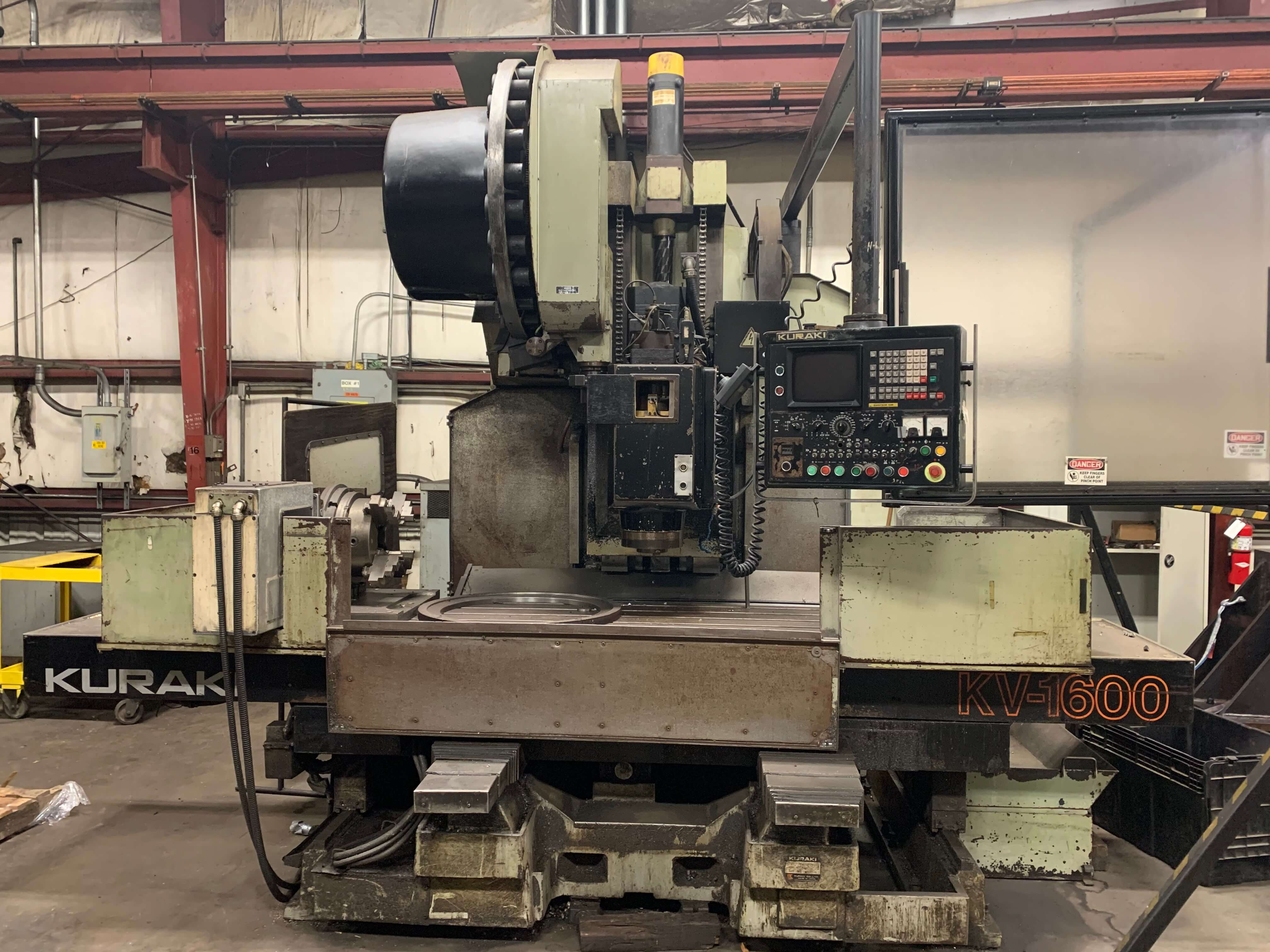

Kuraki KV-1600
Vertical machining center

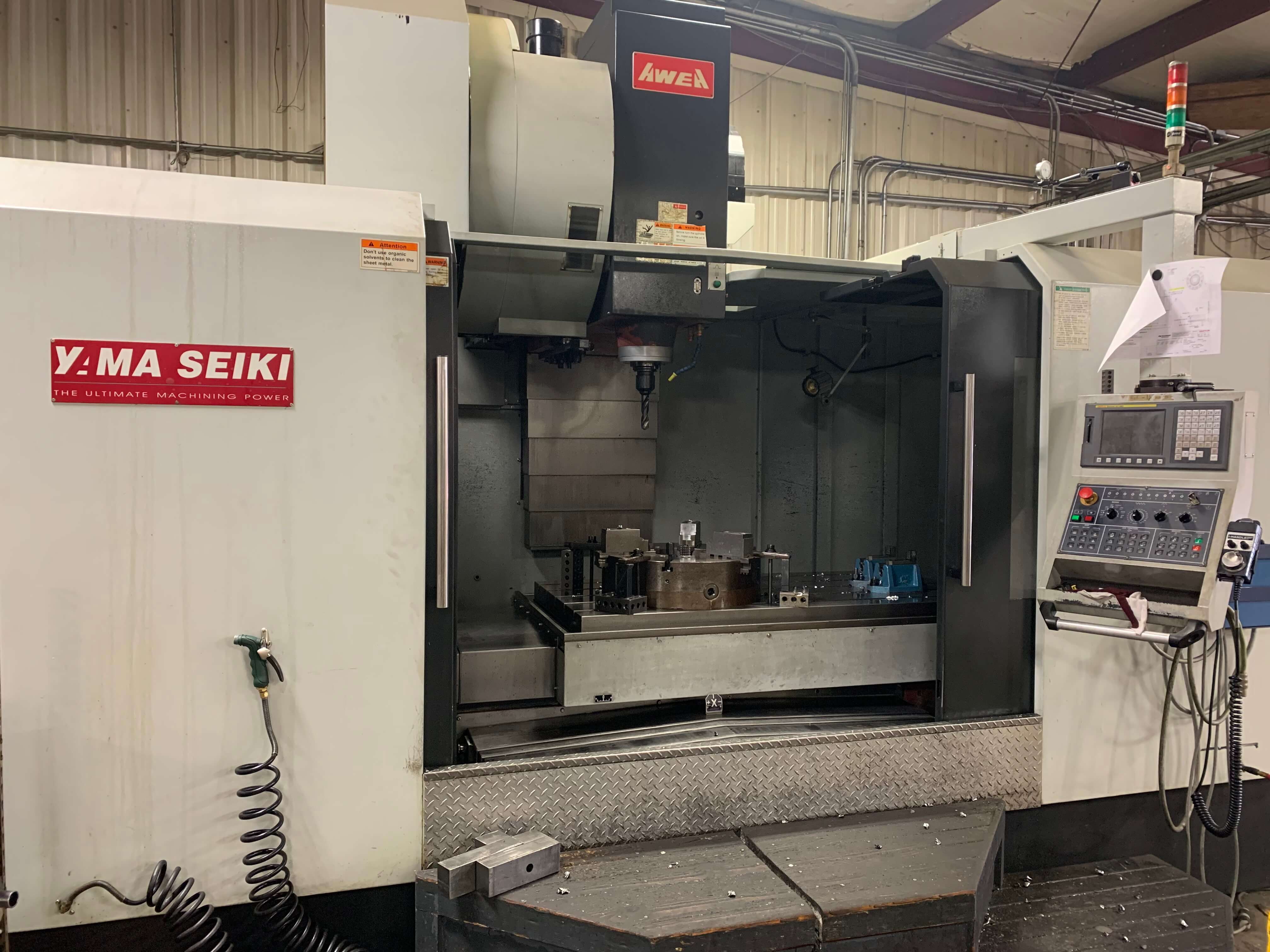

Yama Seiki BM-1600
Vertical machining center

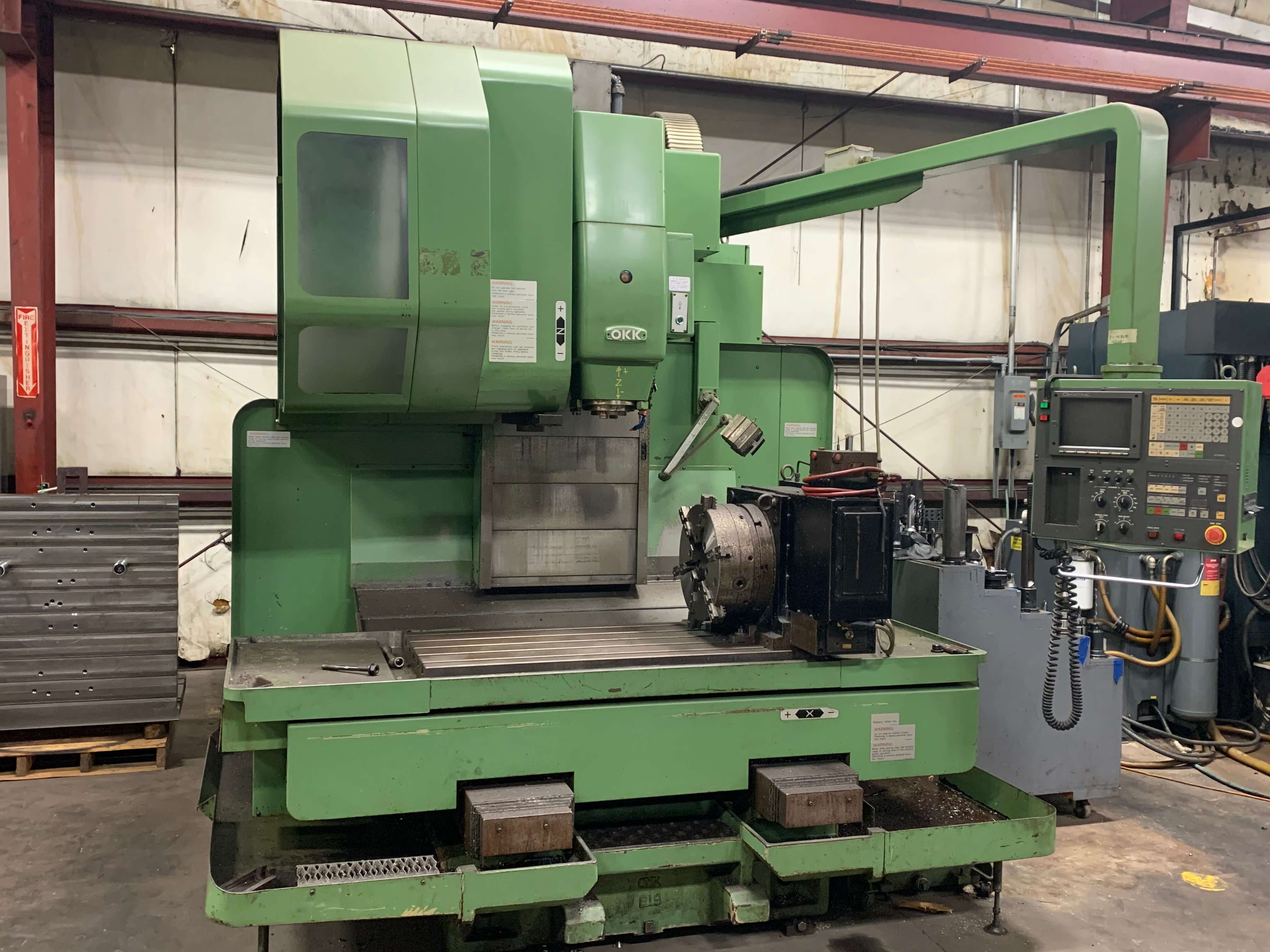

OKK MCV-250
Vertical machining center (4th axis)

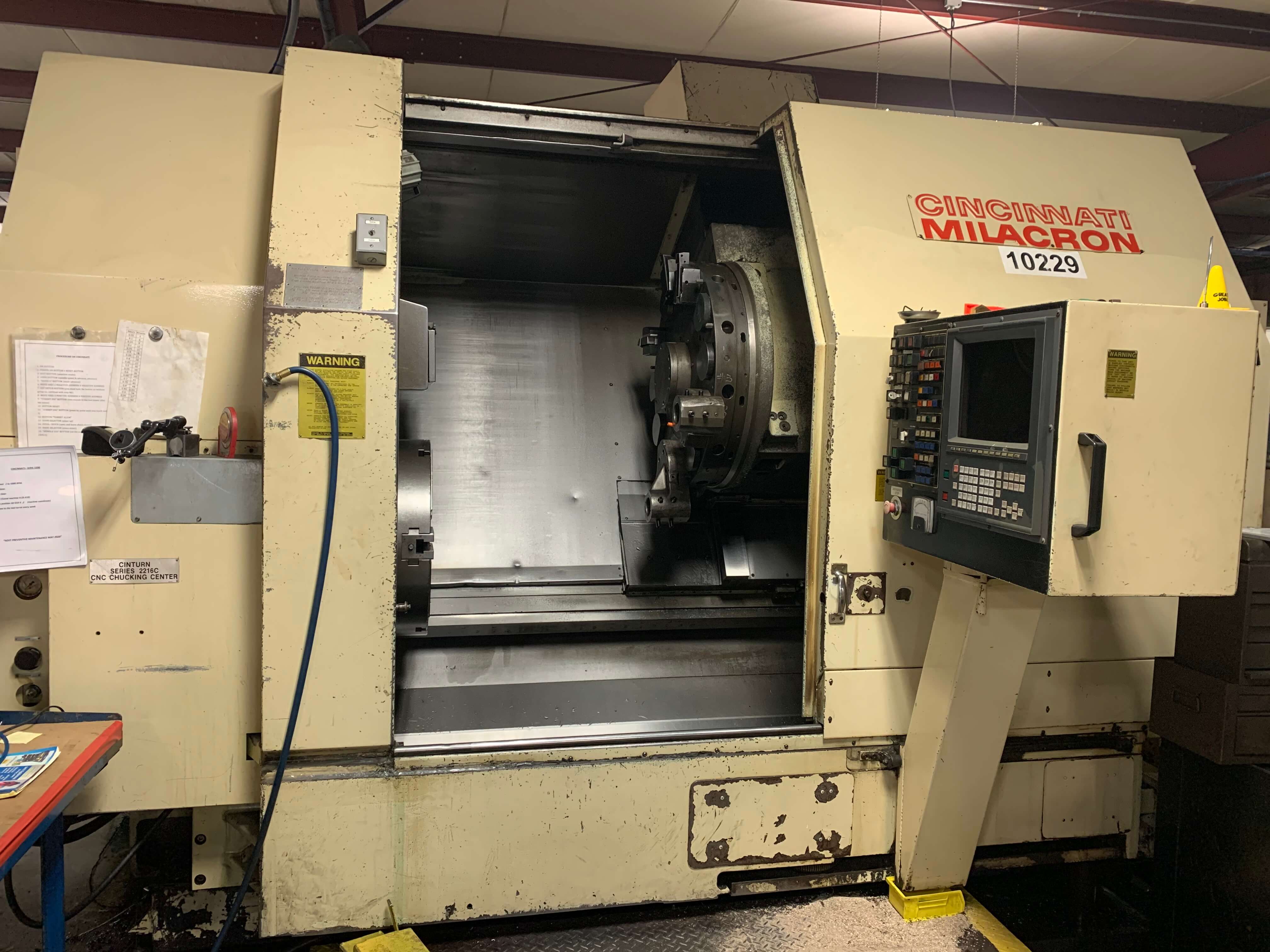

Cincinnati 2216C
CNC lathe

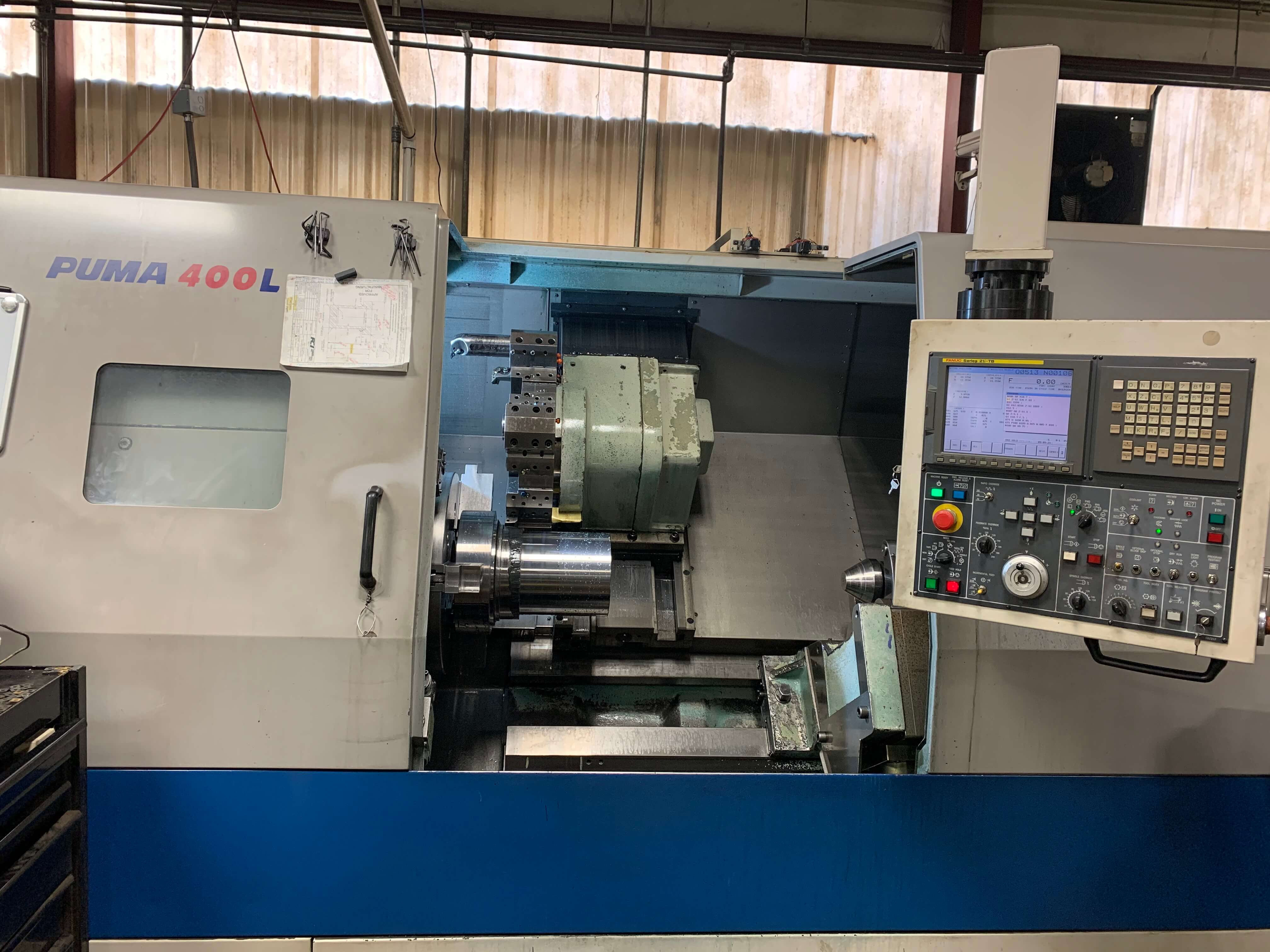

Daewoo Puma LC400
CNC lathe
24.8 in dia × 80 in

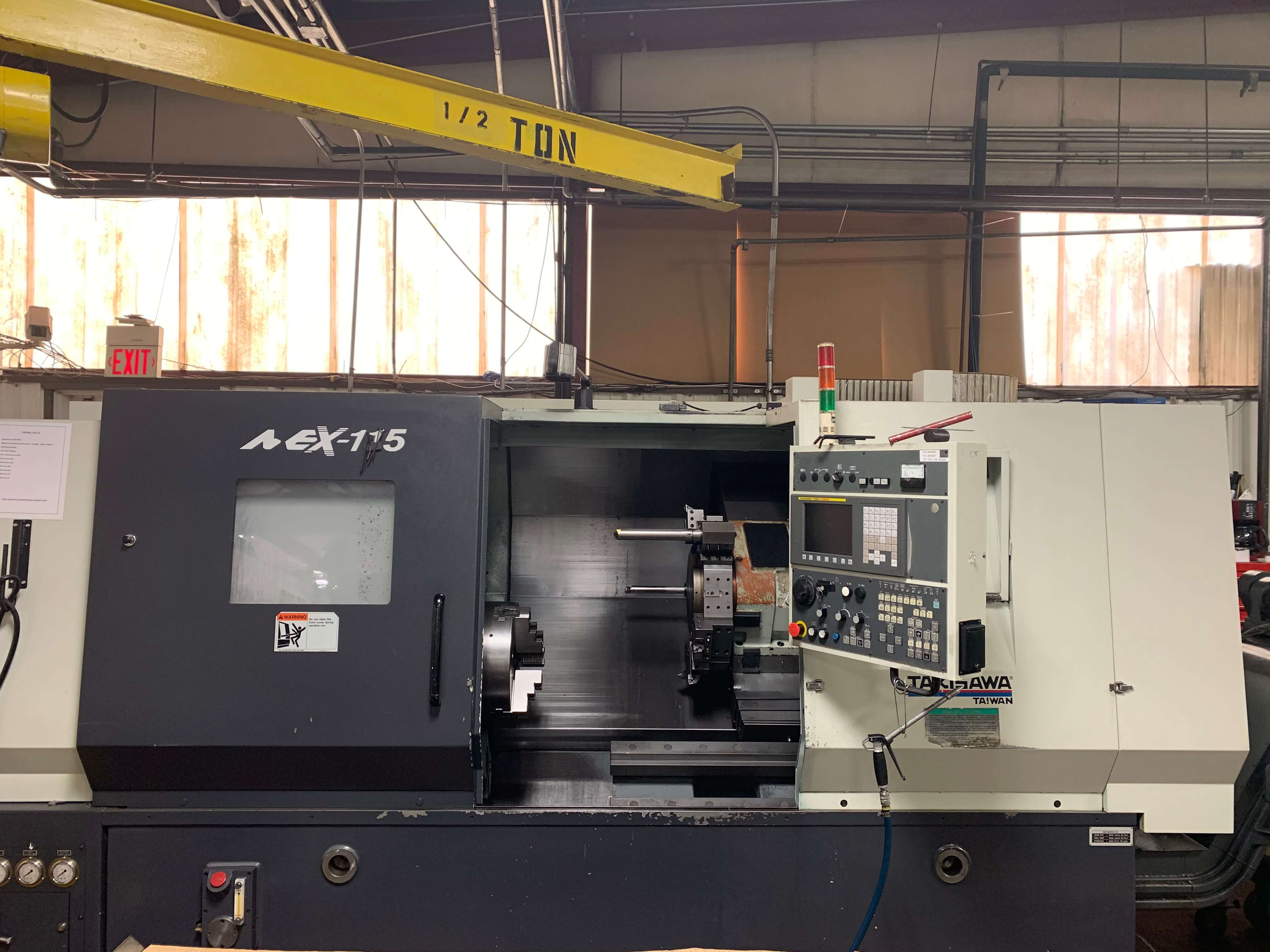

Takisawa NEX-115
CNC lathe
24.8 in dia × 80 in

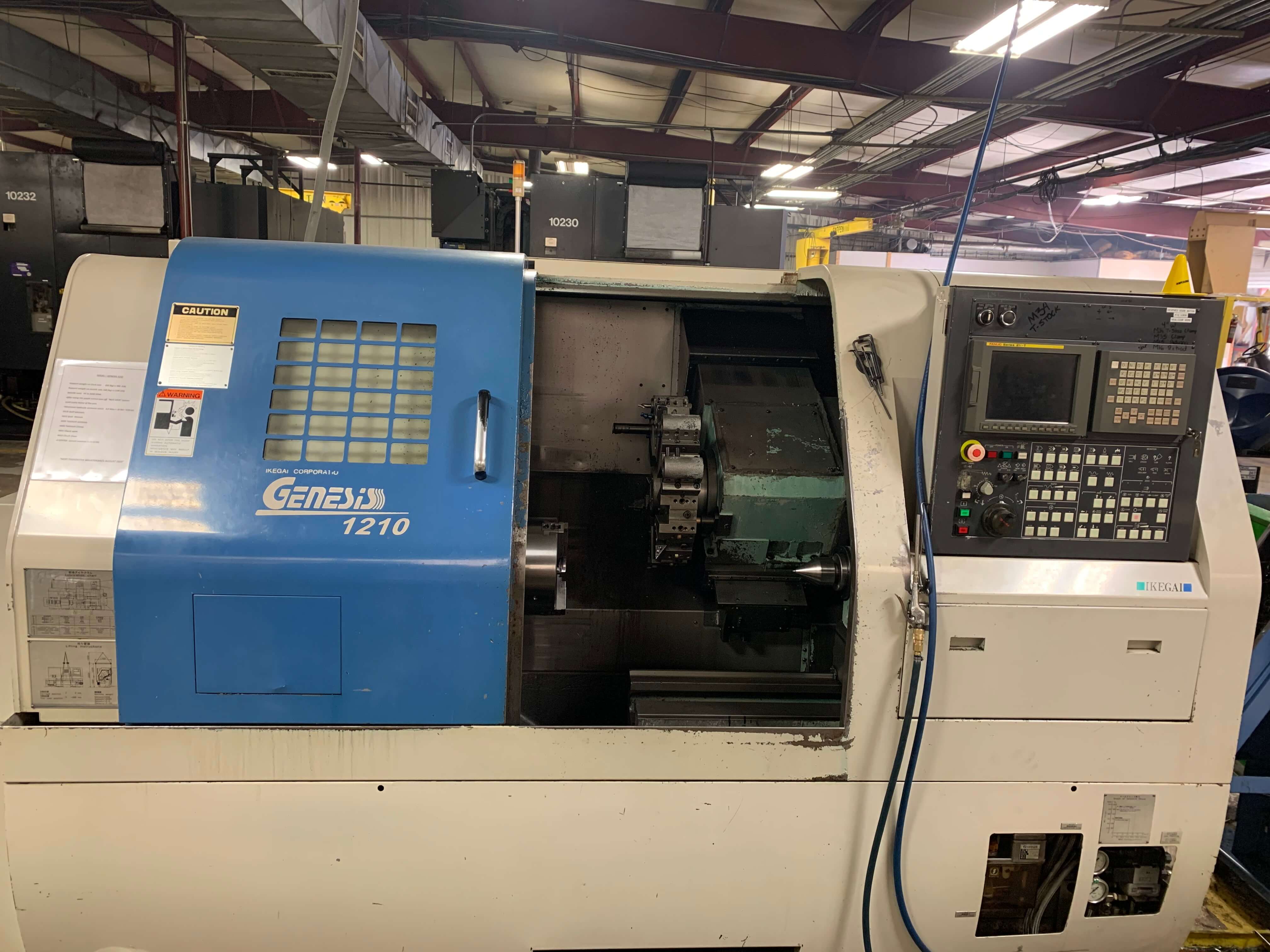

Ikegai Genesis 1210
CNC lathe
24.8 in dia × 80 in

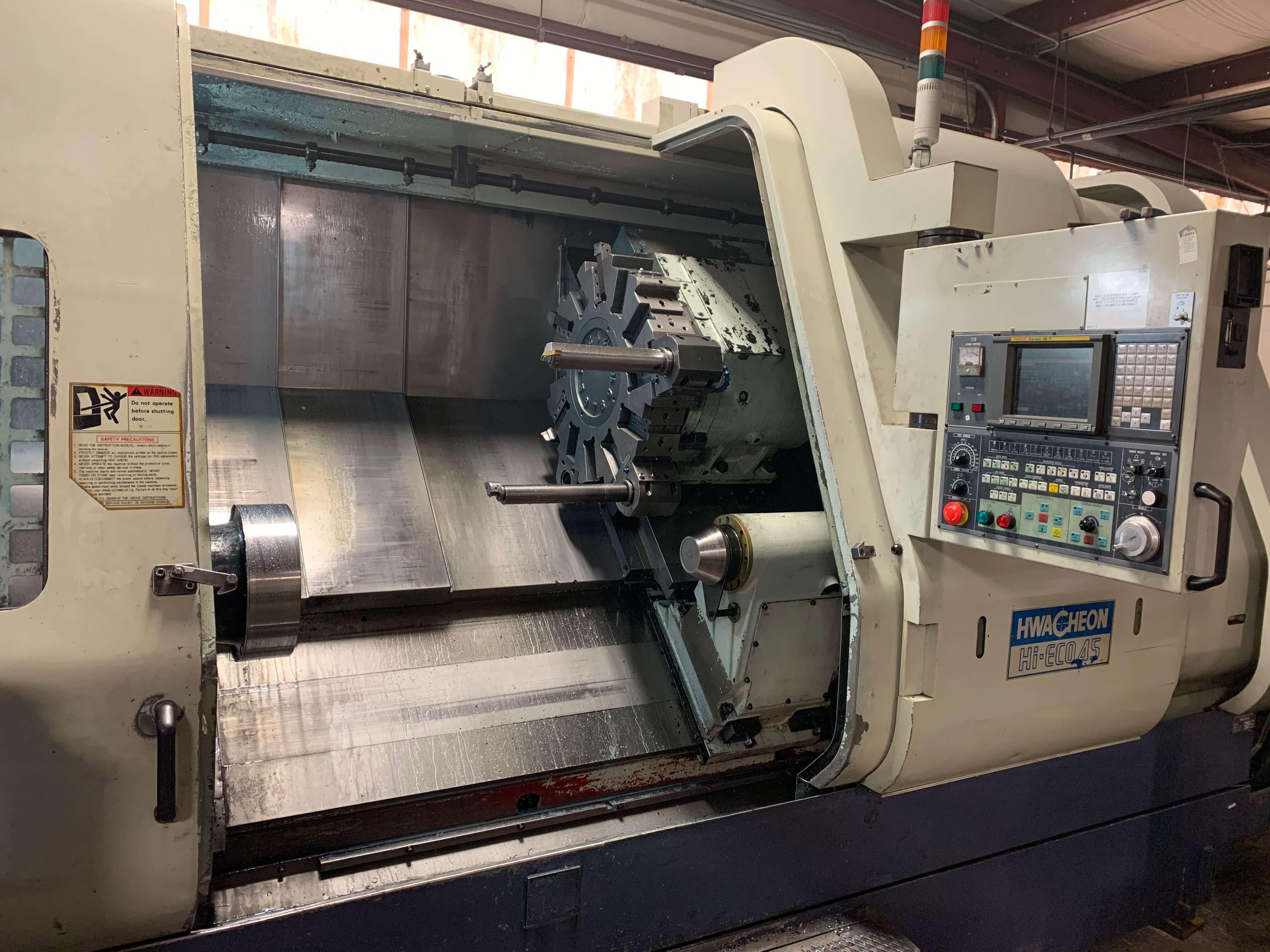

Hwacheon Hi-ECO 45
CNC lathe
24.8 in dia × 80 in
Related products
Related products
Request a quote
Send us the drawing.
Tell us the material, size, class, quantity and need-by date. We quote forgings rough, proof machined or finished.
