Casing heads with side outlets, machined to customer print.
Products
Wellhead products
Forged and machined pressure-control components, built to your print.
Overview

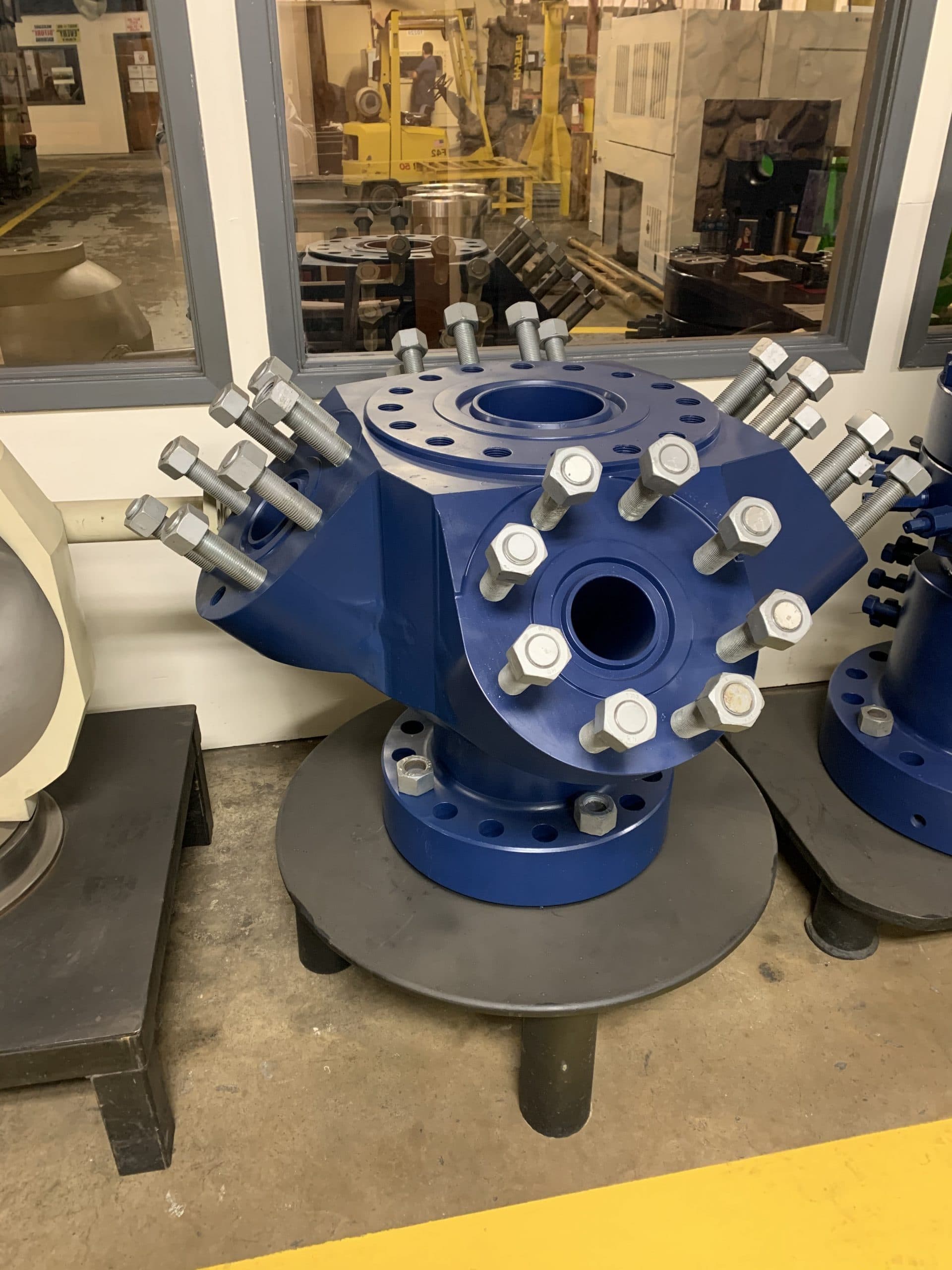

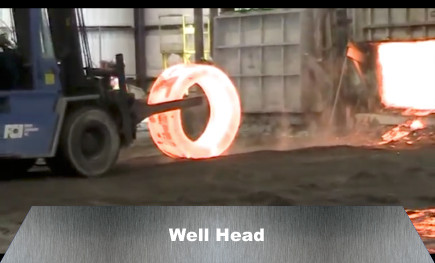

We forge, heat treat and machine casing heads, tubing heads, spools and frac goat heads. All are made to order from customer drawings by staff qualified to API 6A requirements. We also remanufacture wellhead equipment and take contract machining.
Specifications
Specifications
- Products:
- Casing heads · tubing heads & adapters · casing/tubing/drilling spools · goat heads · crosses · studded tees · tree caps · multi-bowls
- Pressure:
- 5M · 10M · 15M · 20M
- Sizes shown:
- 3 1/16 in to 13⅝ in
- Materials:
- API 36K–110K, AISI 4130/8630
- Basis:
- Make to order
- Standard:
- To API 6A requirements and customer specificationConfirm wording. FCI holds no API monogram license.
Range
4 product lines

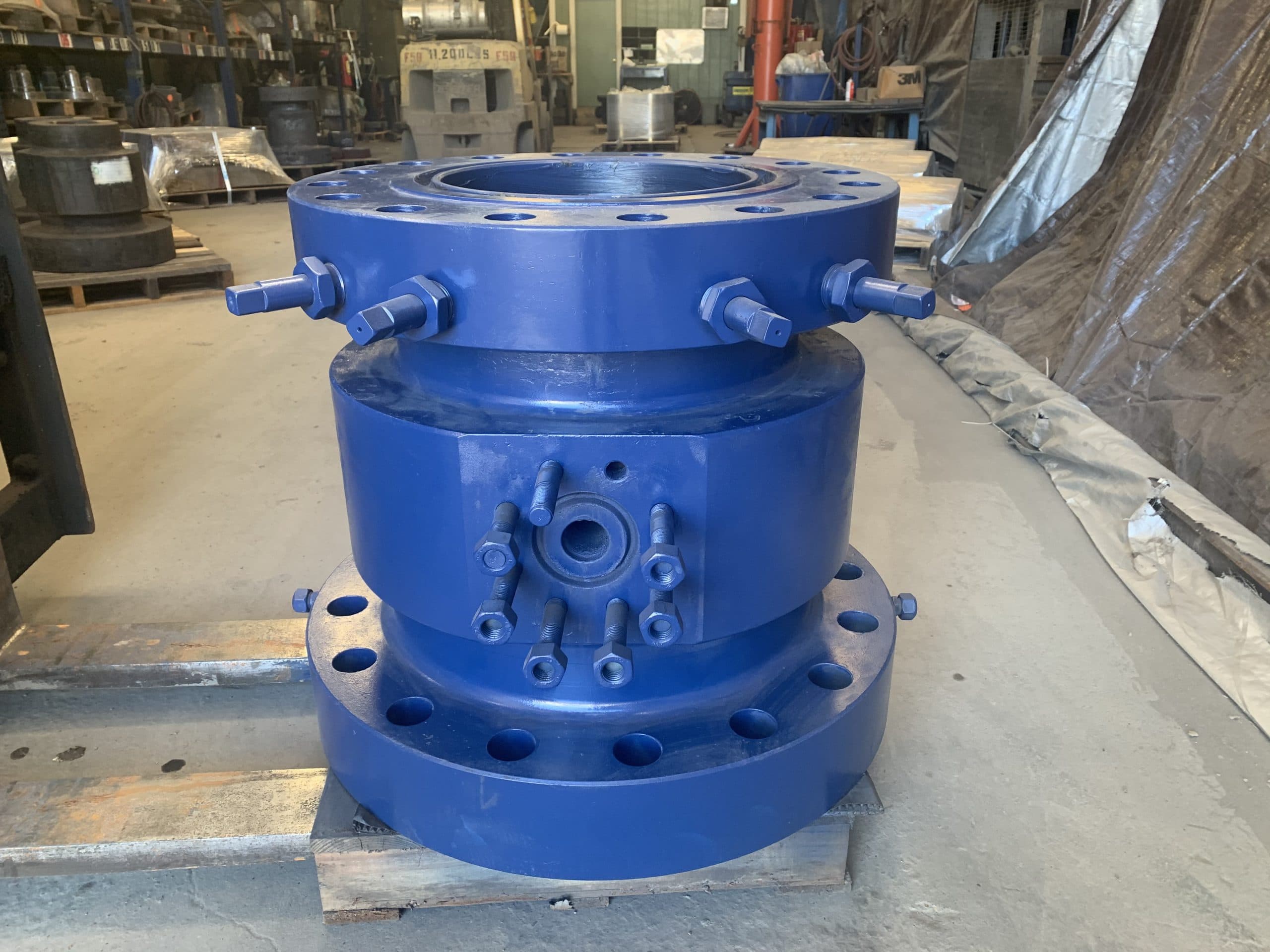

For example a 13⅝ in 5M × 11 in 10M tubing head.

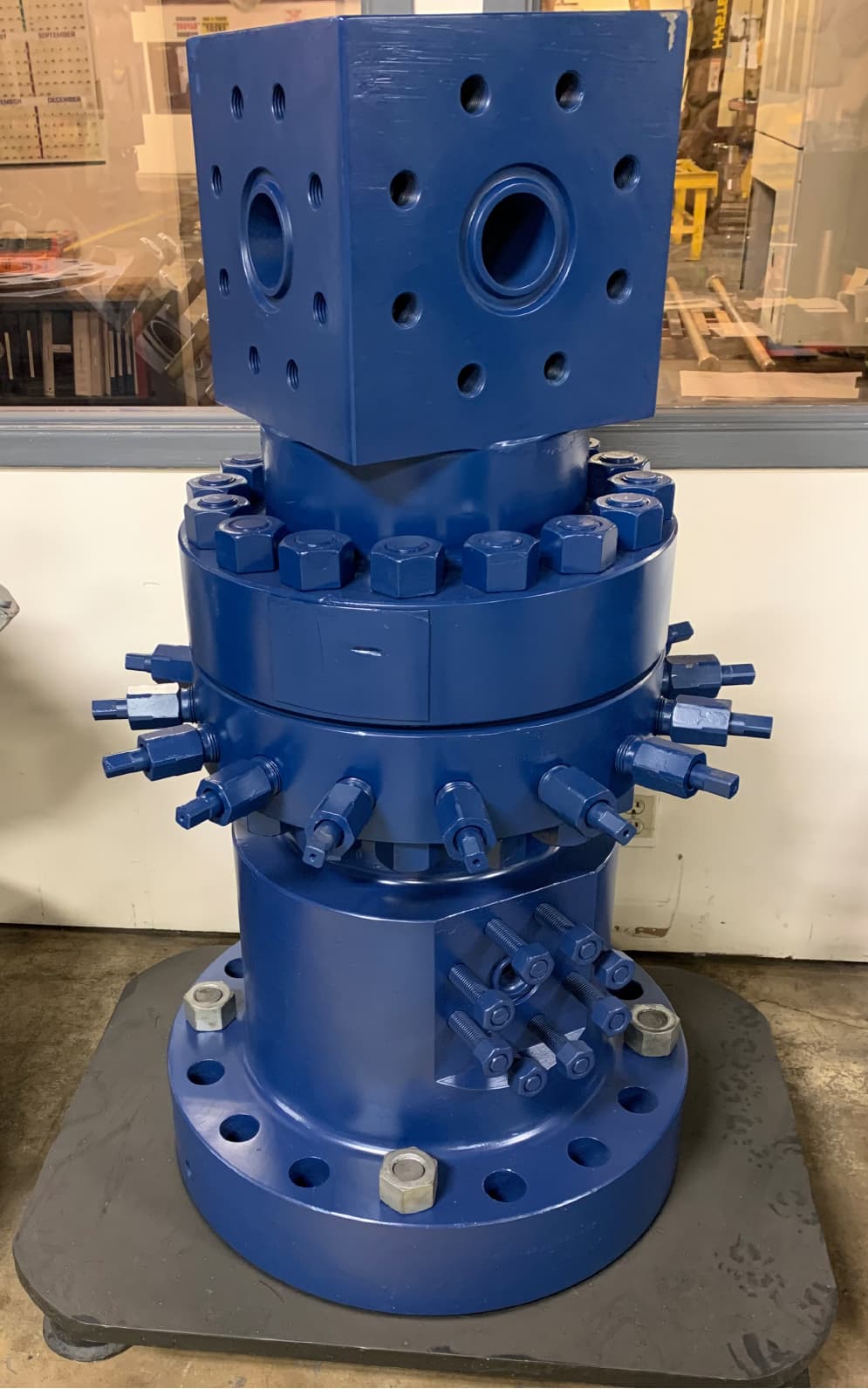

For example a 7 1/16 in 15M spool with 4 1/16 in 15M studded outlets, PSL-3.
Request a quote
Send us the drawing.
Tell us the material, size, class, quantity and need-by date. We quote forgings rough, proof machined or finished.
