Lightest, most economical connection. Uniform barrel with nut relief.
Products
Pressure vessel connections
Integrally reinforced nozzles for ASME vessels. One forging replaces pipe, flange and repad.
Overview
Our nozzle family runs from the Long Weld Neck to the Super Barrel. Each step adds wall for reinforcement, so you pick the lightest barrel your calculation allows. We stock common sizes, classes and grades. Anything else we forge to your print: contoured, hillside, with an insert lip, or as a stub end.
Specifications
Specifications
- Family:
- LWN · HB · I-1 · I-2 · I-3 · E · SB (Q = insert lip)
- Sizes:
- NPS ½–24 (Class 150–1500); NPS ½–12 (Class 2500)
- Large-diameter:
- ASME B16.47 Series A & B, NPS 26–60, Class 75–900
- Also:
- Studding outlets · butt-weld stub ends · blind flanges
- Codes:
- ASME VIII Div 1, B16.5 (standard); VIII Div 2, I, III, B31.1, B31.7 (on request)
- Standard grade:
- SA-105
- Other grades:
- SA-182 F11/F22/F91/F304/F316/F51…, SA-350 LF2/LF3, SA-266, SA-541, SA-765, A694, B564
- Special chemistry:
- HF alkylation (HF-N), API 934-A/C/E Cr-Mo, low J/X factor
- Heat treat:
- Normalized above Class 300
- Facing:
- RF (std), FF, RTJ
- Lengths:
- 9 / 12 / 16 in standard; any length on request
Range
11 product lines
Thicker barrel and automatic nut stop. Sch 80 bore through 12 in.
Three steps of added reinforcement between HB and E.
Barrel OD equals flange OD. Most reinforcement of the standard family.
Barrel OD exceeds flange OD. You specify the OD.
Lip welds into the shell. Easier weld inspection and good toughness at the opening. Common for replacements and cyclic service.

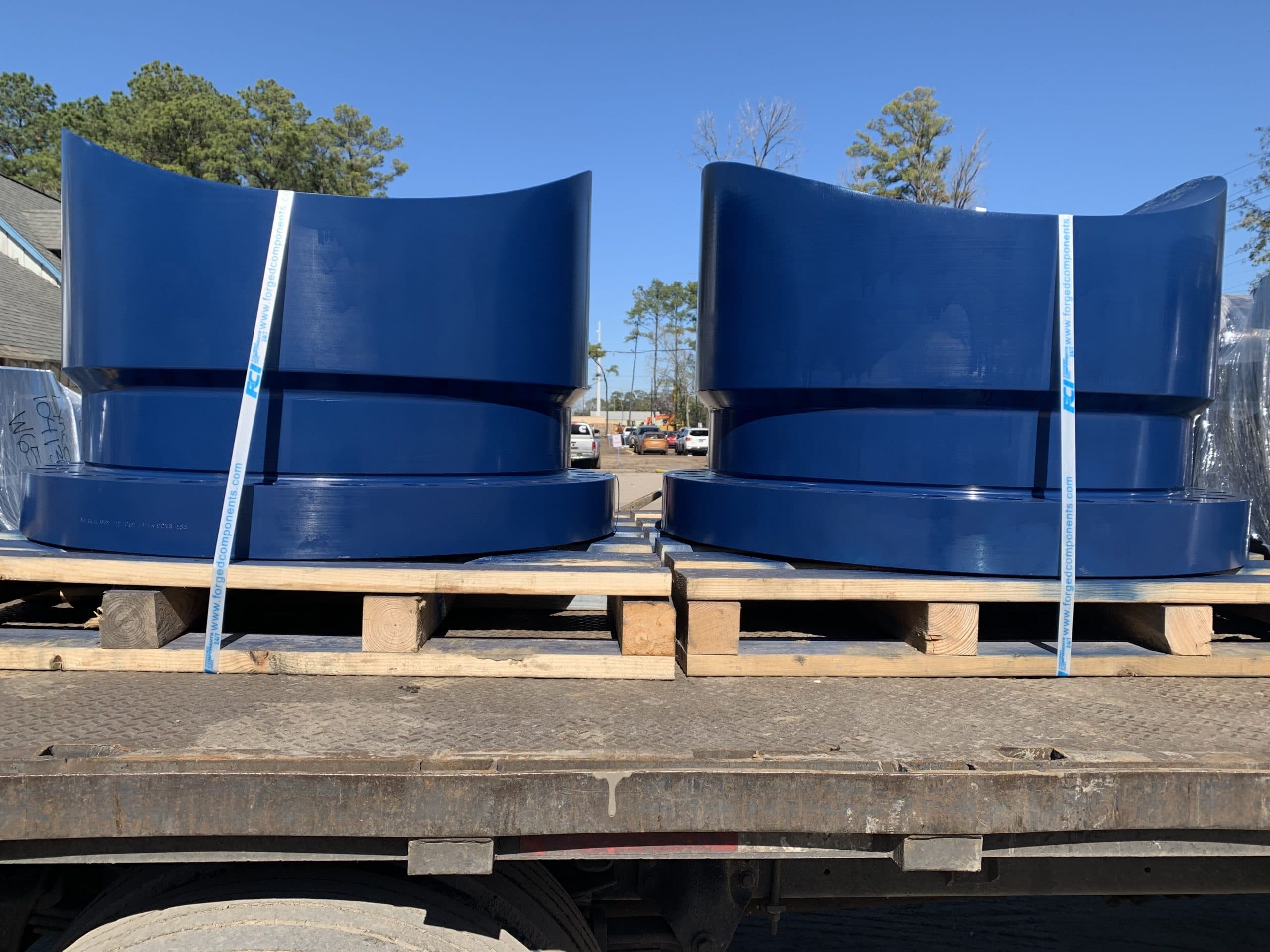

Bottom matched to the shell or head ID. One weld, no grinding flush.
Flat bottom. Flexible projection, internal projection possible.

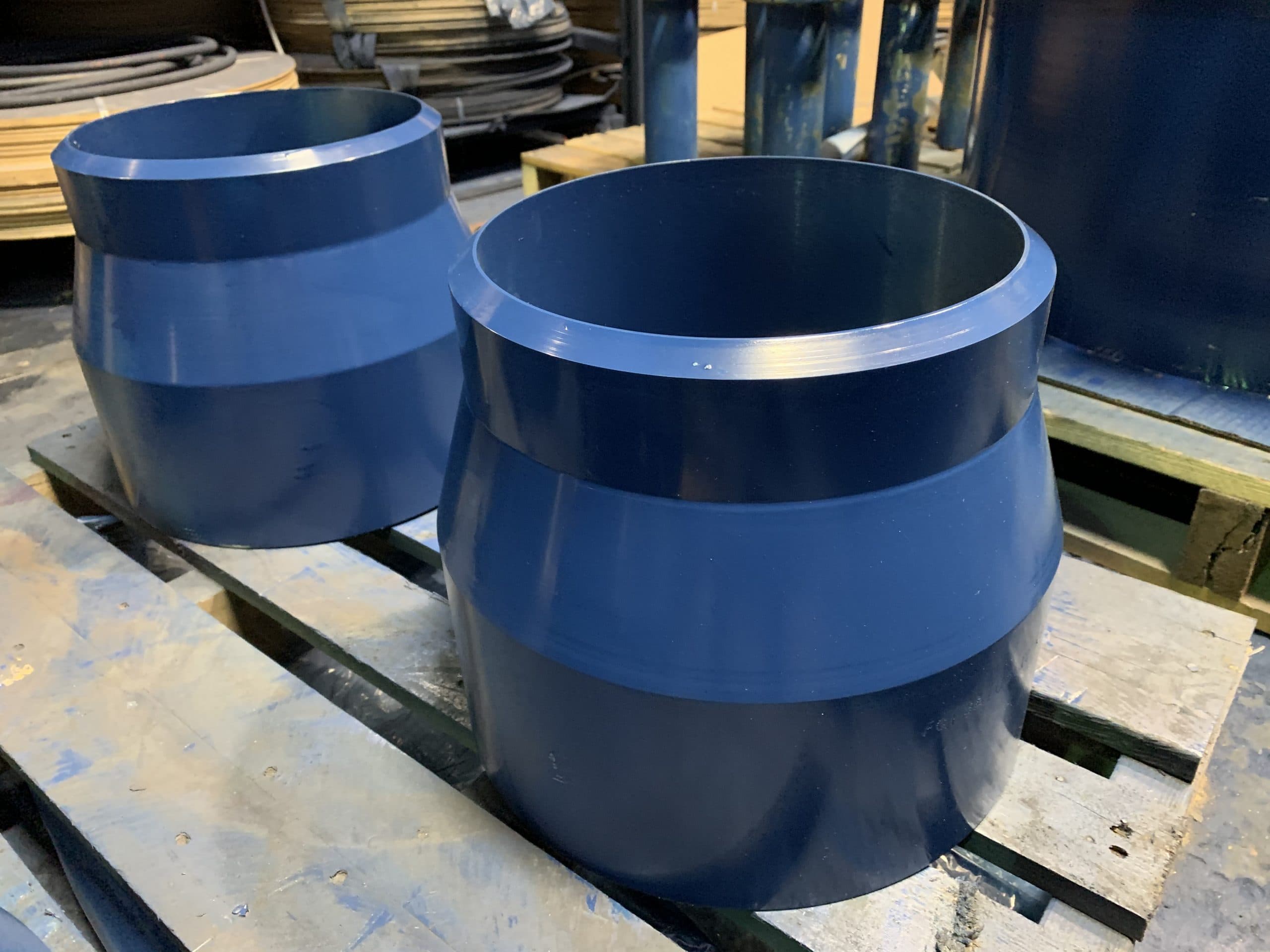

No flange. B16.25 bevel for a field flange or pipe.
Lowest-profile bolted connection. B16.5 drilling, tapped per UG-43.
B16.47 A/B, NPS 26–60, flanges and blinds.
Request a quote
Send us the drawing.
Tell us the material, size, class, quantity and need-by date. We quote forgings rough, proof machined or finished.
