Custom forgings
Open-die shapes from 5 to 55,000 lb, forged from steel we already have on the floor.
Overview
We forge rings, discs, blocks, cylinders and complex shapes to your drawing. We also heat treat, machine and inspect them in-house. Ship them rough, proof machined or finished.
Specifications
Specifications
- Weight:
- 5–55,000 lb

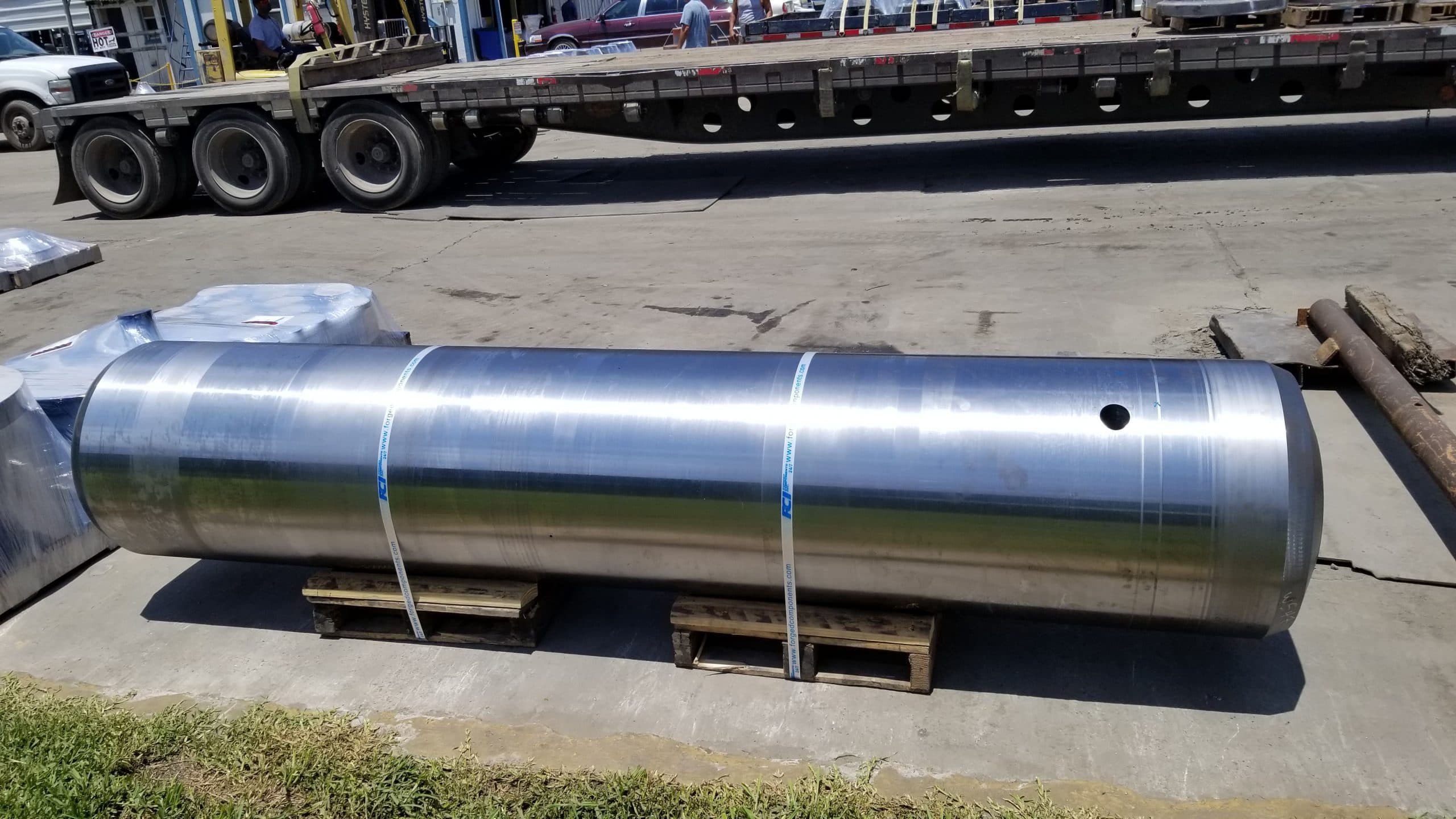

- Cylinders:
- to 110 in OD × 140 in long

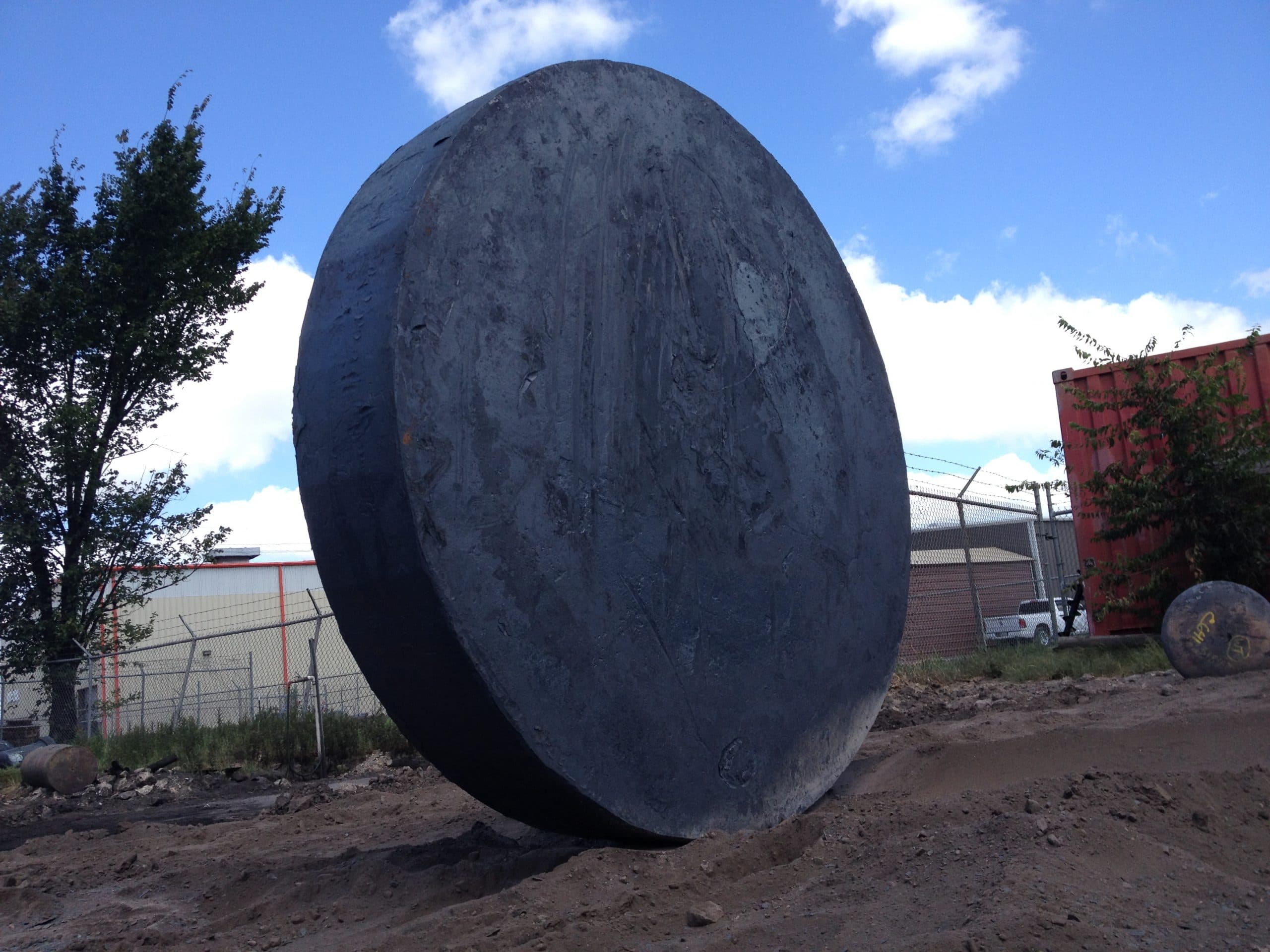

- Rings & discs:
- to 110 in ODConfirm max OD: 110 vs 100 vs 95 in
- Rings:
- Seamless rolled on 300-ton ring roll
- Process:
- Open die · semi-closed die
- Materials:
- Carbon, low alloy, Cr-Mo, stainless, duplex, nickel alloy
- Grades:
- SA-105, SA-266, SA-336, SA-350, SA-541, SA-182, SB-564, A694, A707, AISI 4130/4140/4340/8630, API 36K–110K
- NACE:
- On request
- Condition:
- Rough · proof machined · finished
- PED scope:
- Rings, discs, blocks, cylinders, tube sheets, valves
Range
9 product lines
Square, butt-weld or closed ends, drilled holes, tapers.

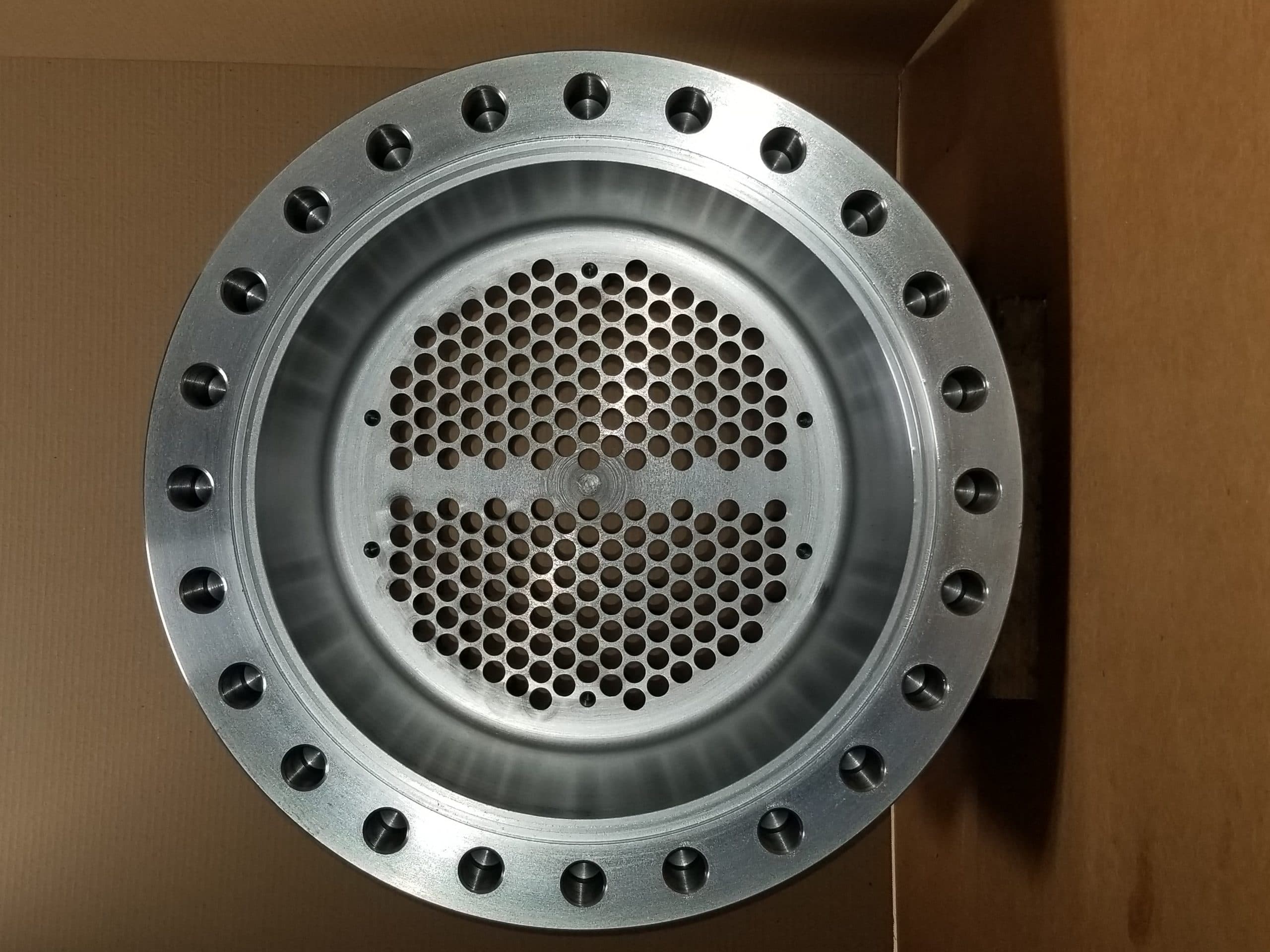

Tubesheets, including flanged and drilled.
Rough and machined valve bodies and bonnets.
Mandrel-forged rings and large valve seal rings.
Reducers, hubs, Y-blocks, specialty flow nozzles and bar.
Request a quote
Send us the drawing.
Tell us the material, size, class, quantity and need-by date. We quote forgings rough, proof machined or finished.
